ECG Recorder for Polar H10

Rejestrator EKG do Polar H10

English

ECG Recorder turns a Polar H10 chest strap into an overnight ECG logger. It records the raw single-lead ECG at 130 Hz, heart rate with RR intervals and the accelerometer for as long as you want — through the night, screen off, app swiped away — and keeps everything on your phone.

Requires a Polar H10 chest strap (Bluetooth Low Energy). Other sensors are not supported.

Screenshots from real Polar H10 recordings; the sensor's serial number is covered.

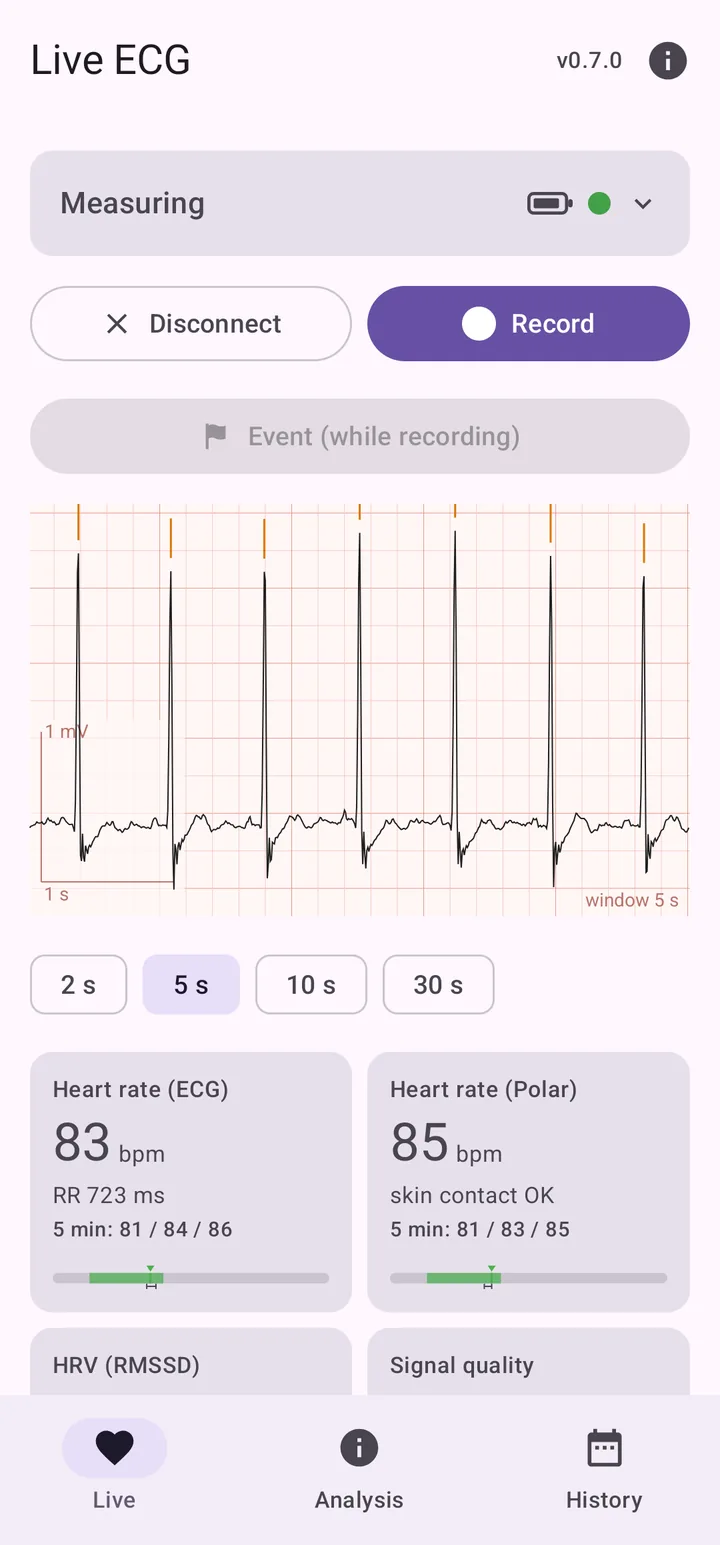

What you see live

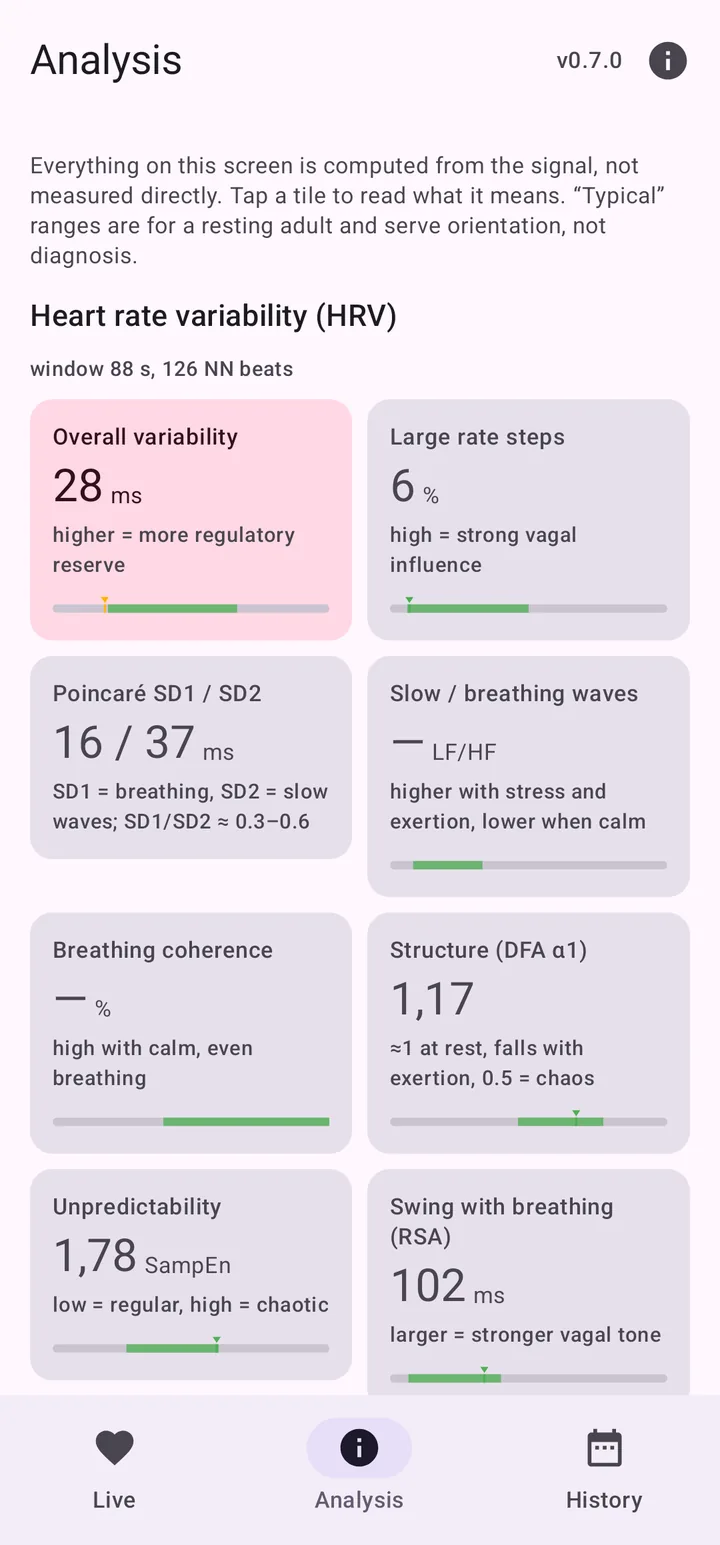

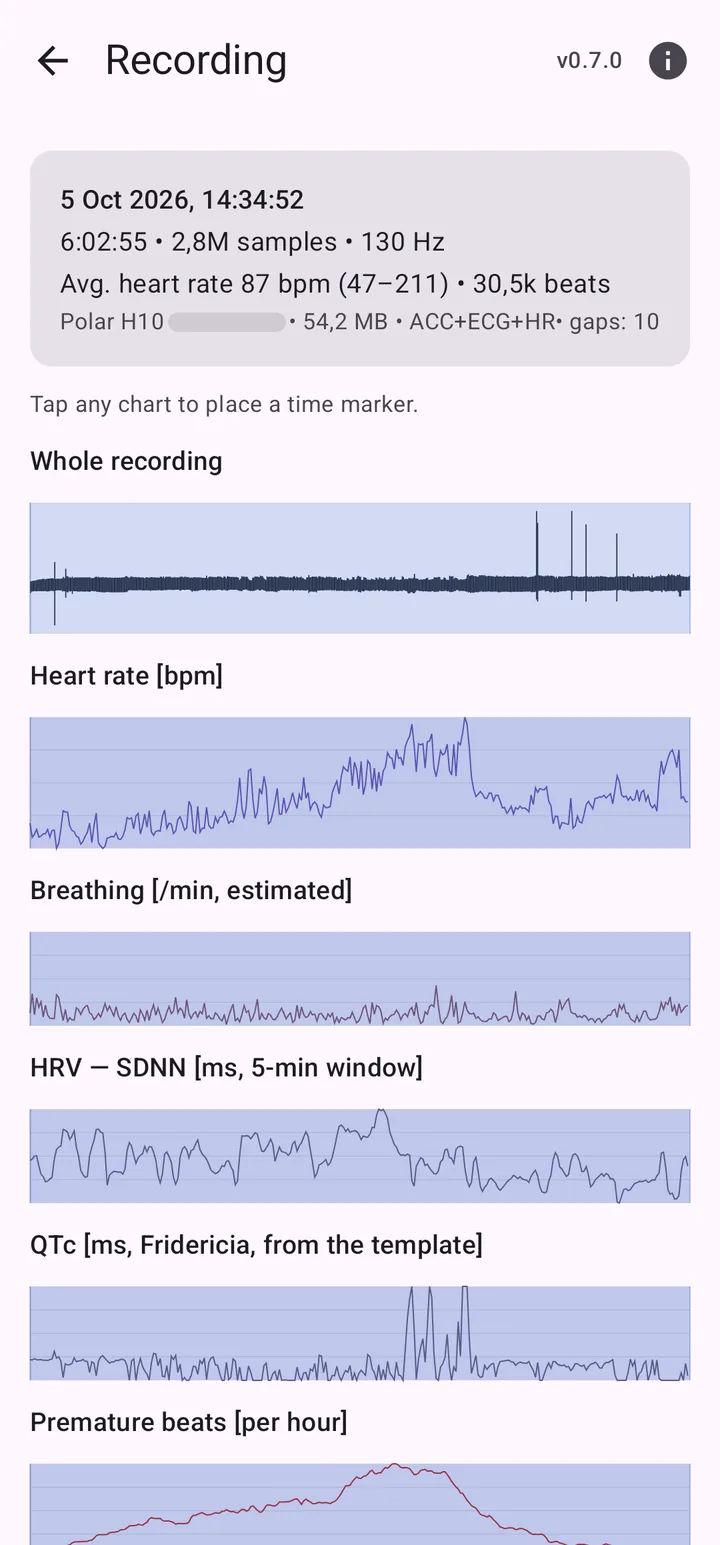

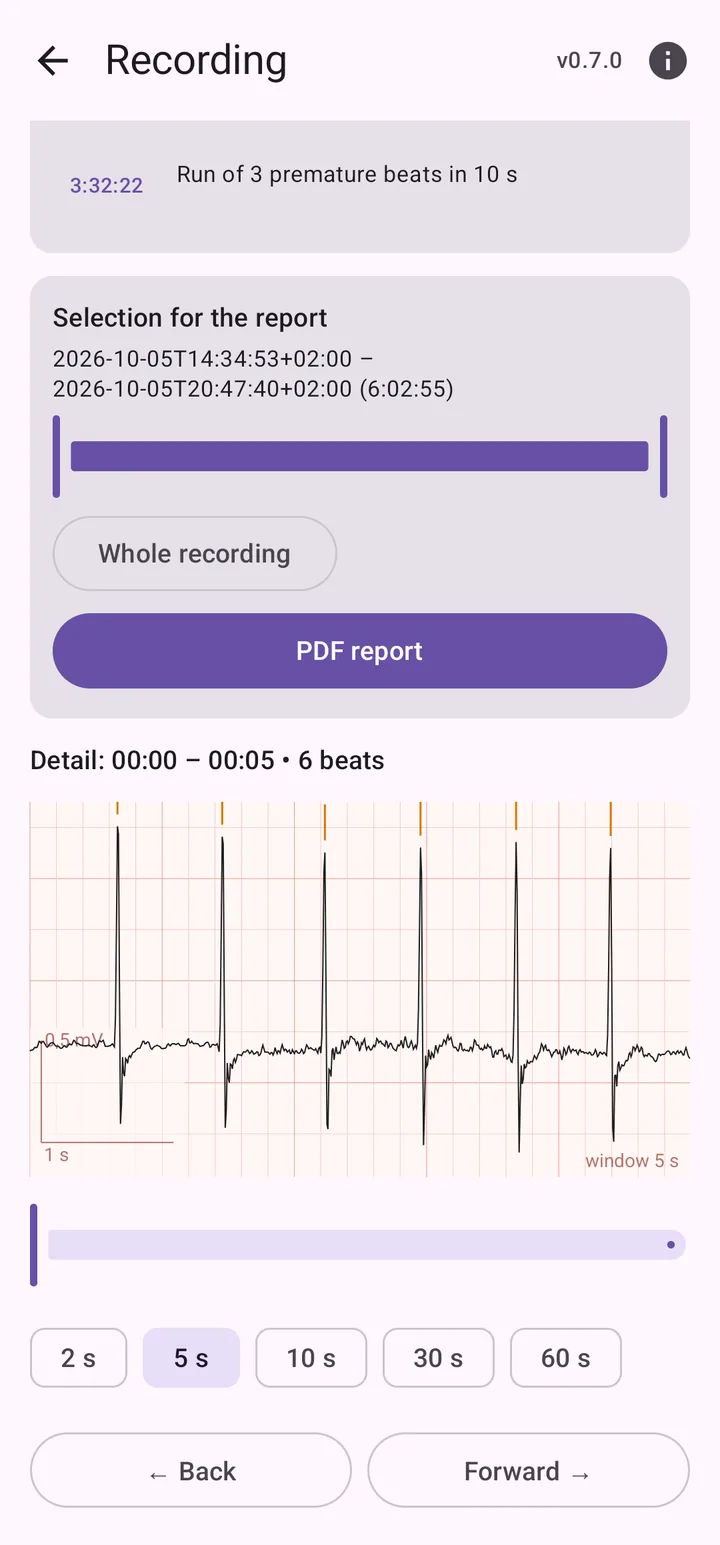

What you get from a recording

Alerts while recording (optional)

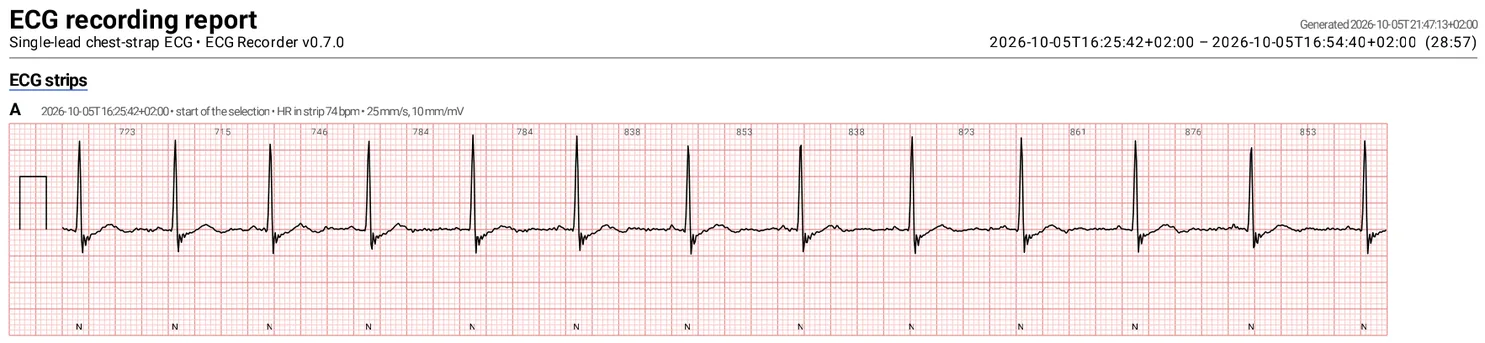

Part of a PDF report: the header with the selected time range and a 10-second ECG strip on ECG paper with a calibration pulse, RR intervals and the class of every beat
PDF report: a 10-second strip on ECG paper (25 mm/s, 10 mm/mV), RR intervals in ms above the beats, beat classes below.

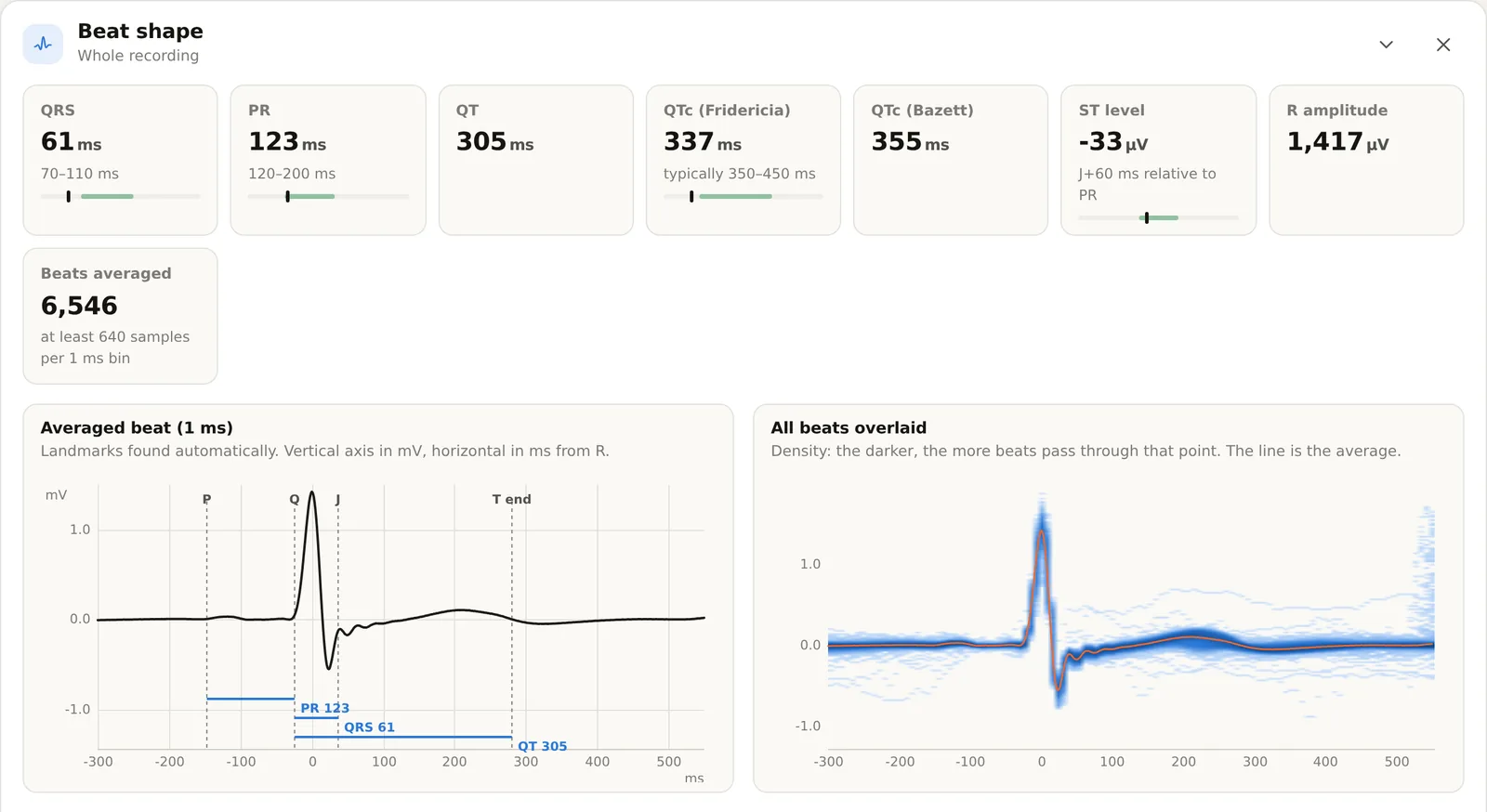

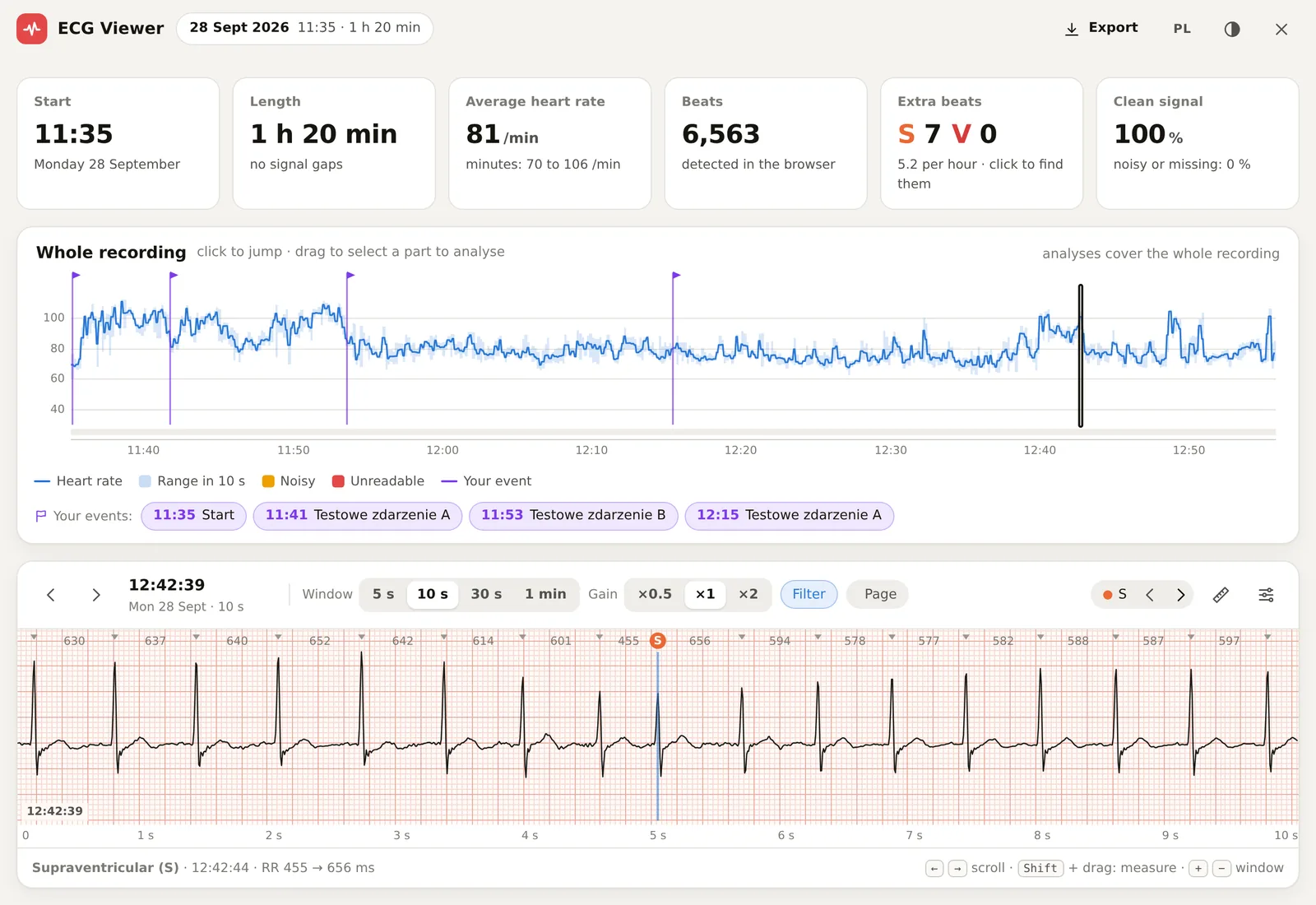

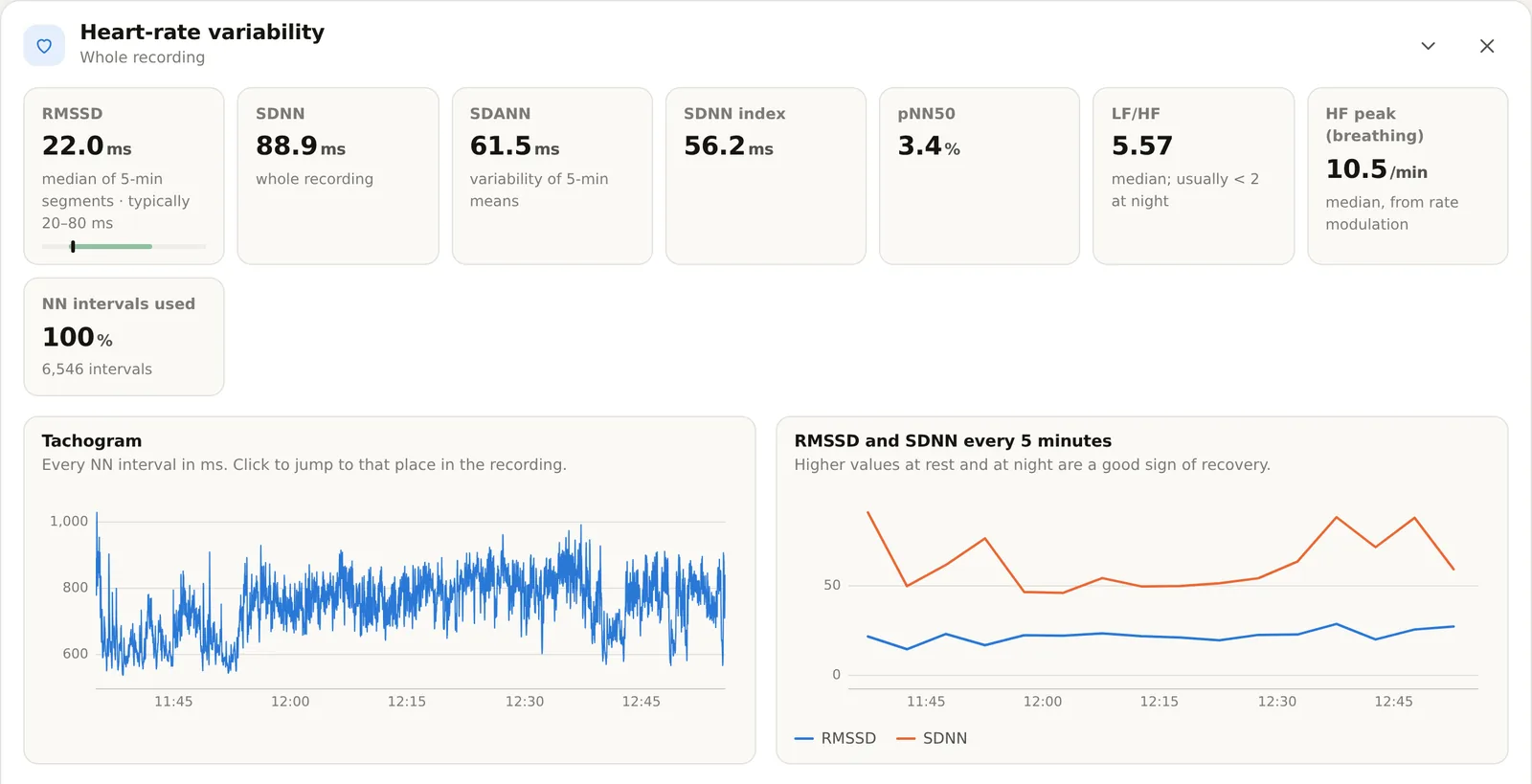

On a computer: ECG Viewer

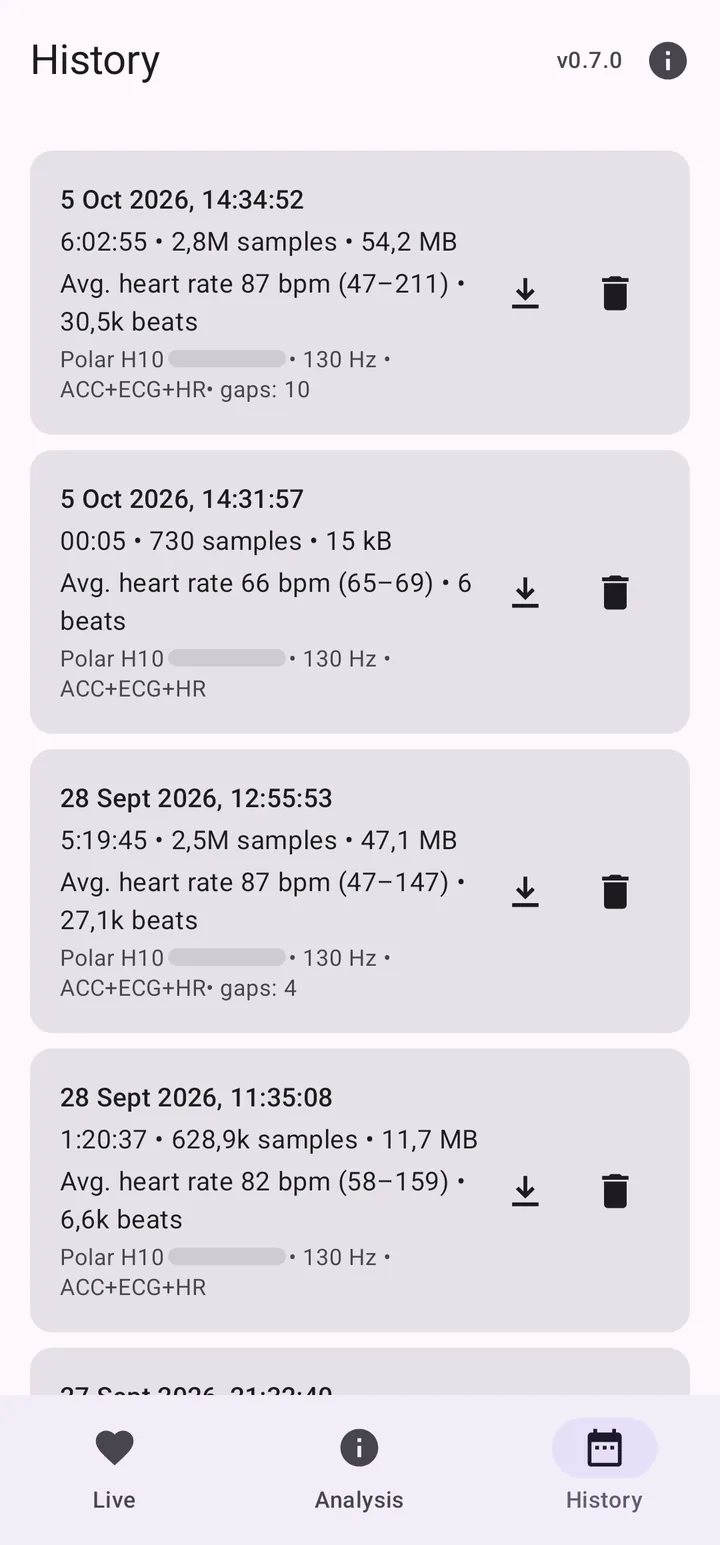

ECG Viewer opens recordings in a web browser. In the app, go to History and tap the save icon next to a recording: it saves a ZIP file that the viewer opens without unpacking. To see what a real night looks like first, open the sample night below.

The file is read and analysed only in your browser tab. ECG Viewer blocks all network connections, so your recording is not sent anywhere — not even to this site.

Open ECG Viewer Download for offline use

The download is a single HTML file (about 470 KB): open it from your disk in any web browser, without internet. It does not update itself — download it again for a newer version.

See a sample night Download the sample recording

13 hours from a Polar H10, recorded with ECG Recorder by the app’s author (the date is changed): turning over in bed, getting up at night, connection drops — and what the analysis makes of them. The page downloads about 16 MB; the ZIP is the same recording, to open in ECG Viewer or analyse yourself.

Privacy

No account, no cloud, no network permission. Recordings never leave your phone unless you share them.

Privacy policy

An idea, something in the way, or a bug? Write to the author straight from the app (Settings → Ideas and feedback) or to kontakt@digitalpurr.com.

Not a medical device ECG Recorder is not a medical device and does not diagnose, treat, cure or prevent any medical condition. All values are automatic estimates from a single consumer lead. Consult a healthcare professional for medical advice, diagnosis or treatment.

Languages: English, Polish, German, Spanish, French, Italian, Portuguese (Brazil and Portugal), Russian, Czech, Slovak, Dutch, Swedish, Finnish, Hungarian, Croatian, Greek, Japanese, Chinese (Simplified and Traditional) — in the app, the PDF report and ECG Viewer.

Polar is a trademark of Polar Electro Oy. ECG Recorder is not affiliated with or endorsed by Polar.

Polski

Rejestrator EKG zamienia pas piersiowy Polar H10 w nocny rejestrator EKG. Zapisuje surowy sygnał jednoodprowadzeniowego EKG 130 Hz, tętno z odstępami RR i akcelerometr tak długo, jak chcesz — przez całą noc, przy zgaszonym ekranie, po zamknięciu aplikacji — i wszystko zostaje na Twoim telefonie.

Wymaga pasa Polar H10 (Bluetooth Low Energy). Inne czujniki nie są obsługiwane.

Zrzuty z prawdziwych nagrań z pasa Polar H10; numer seryjny czujnika zasłonięty.

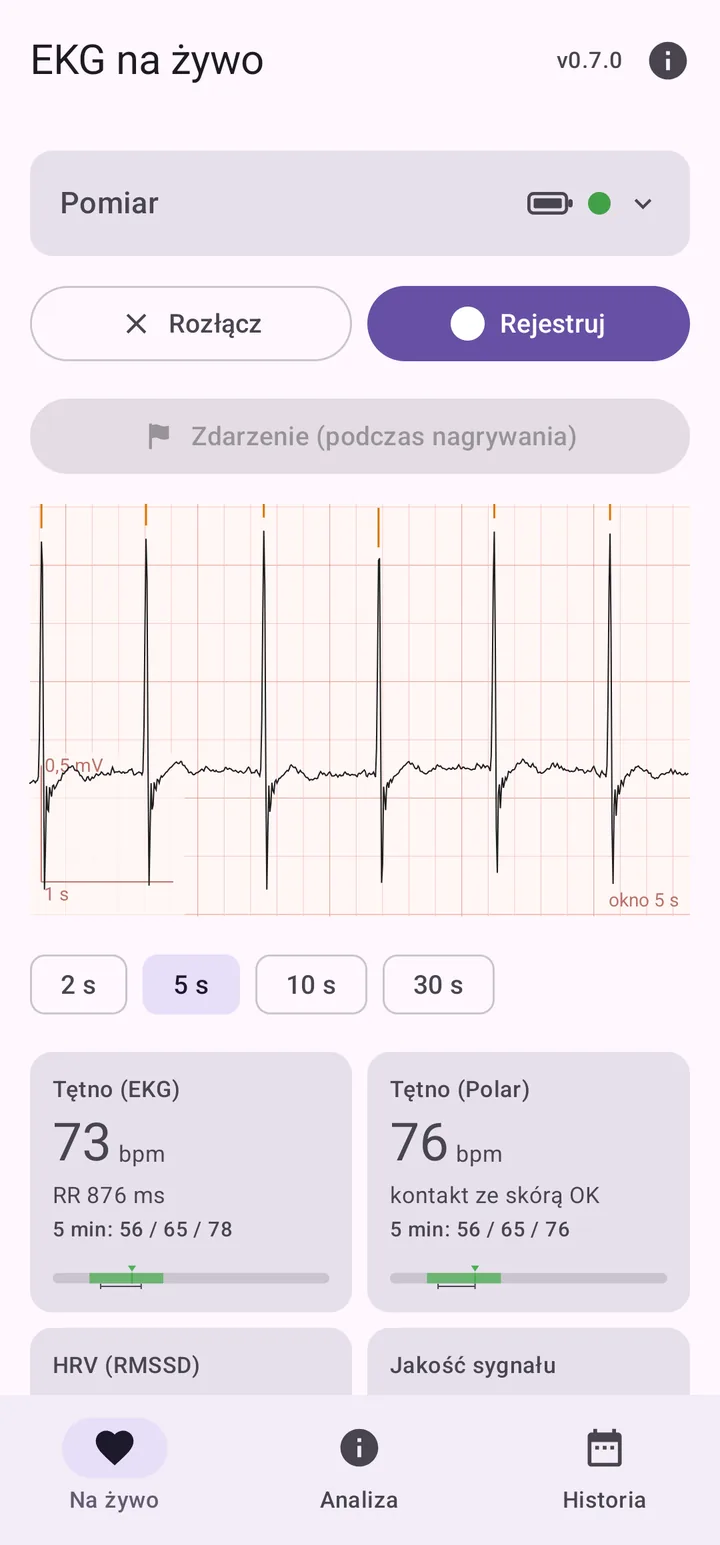

Na żywo

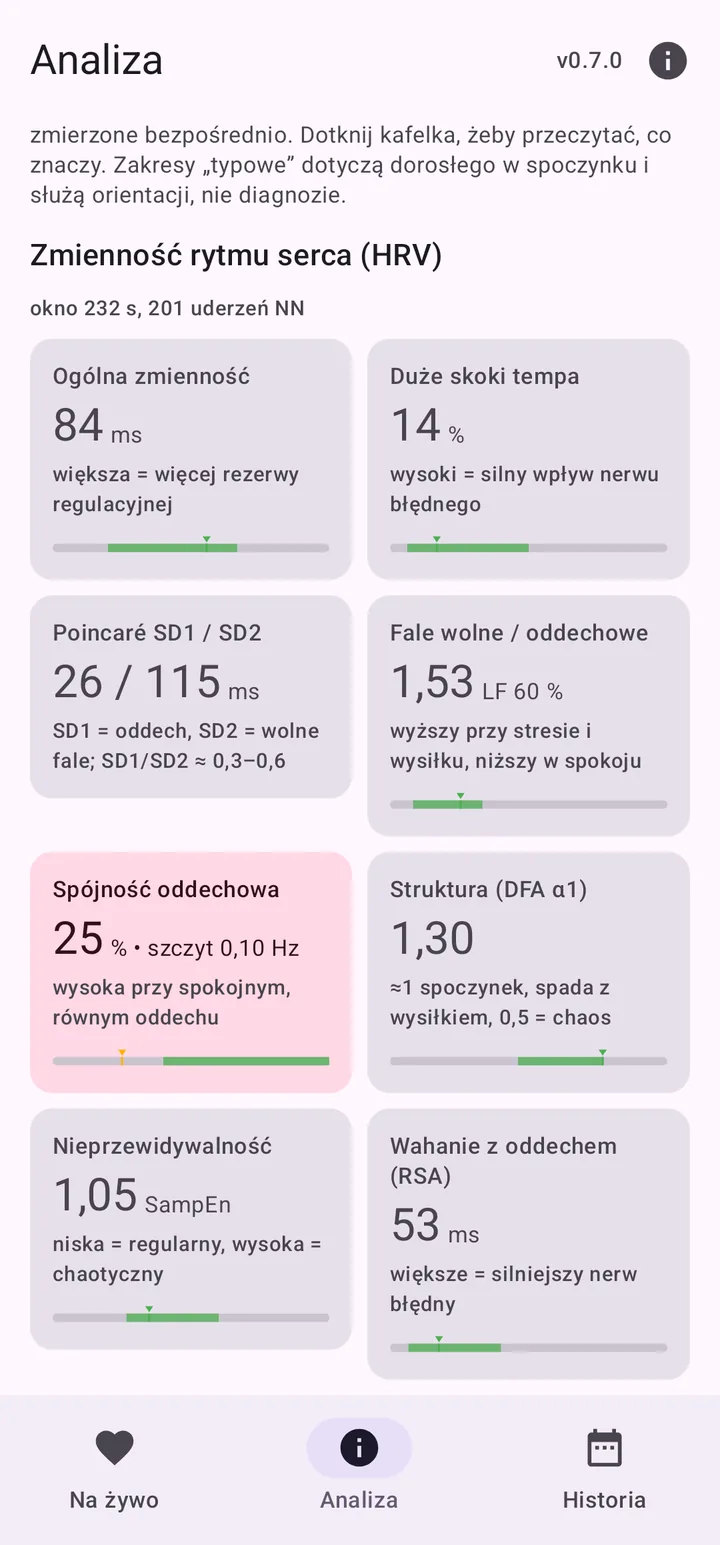

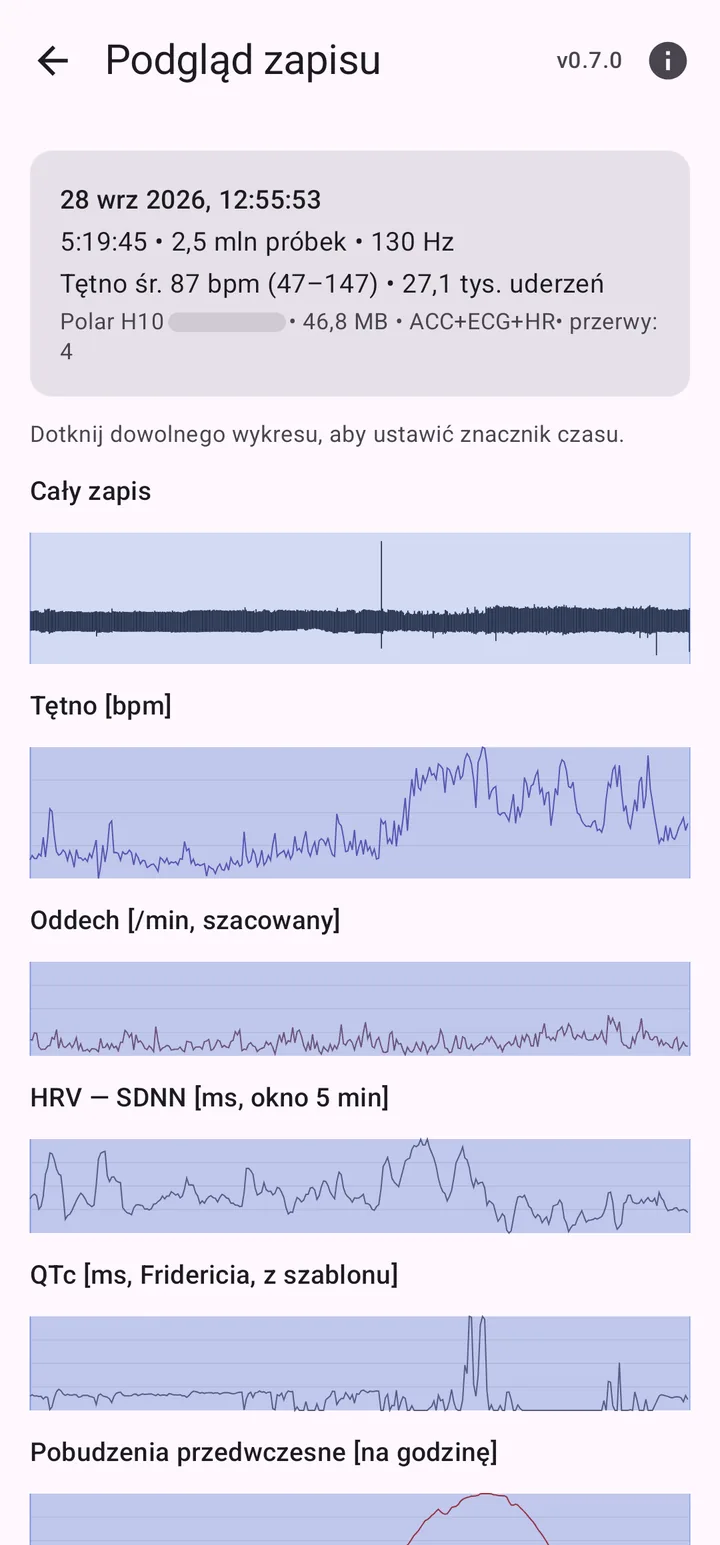

Z zapisu

Alerty podczas zapisu (opcjonalne)

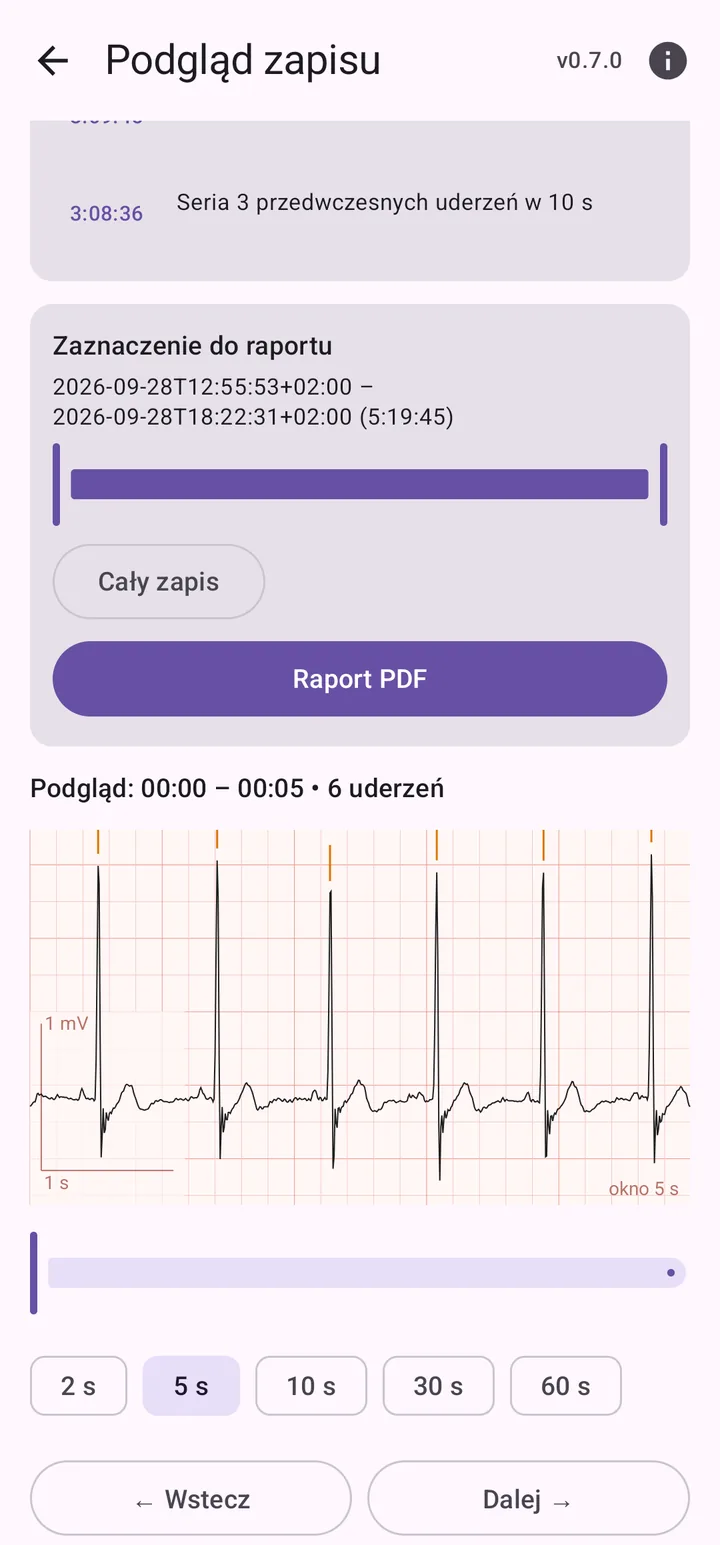

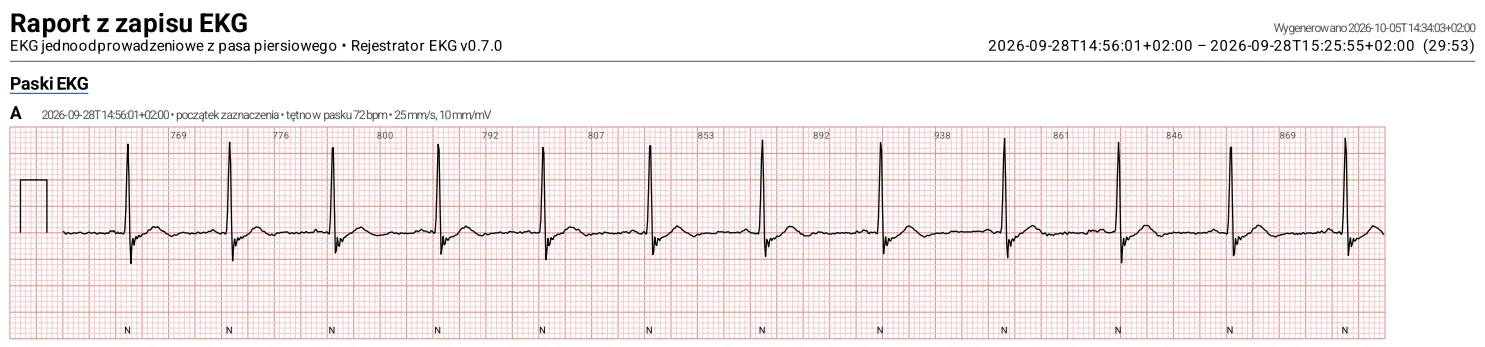

Fragment raportu PDF: nagłówek z czasem zaznaczenia i 10-sekundowy pasek EKG na papierze z impulsem kalibracyjnym, odstępami RR i klasą każdego uderzenia
Raport PDF: 10-sekundowy pasek na papierze EKG (25 mm/s, 10 mm/mV), nad uderzeniami odstępy RR w ms, pod nimi klasy uderzeń.

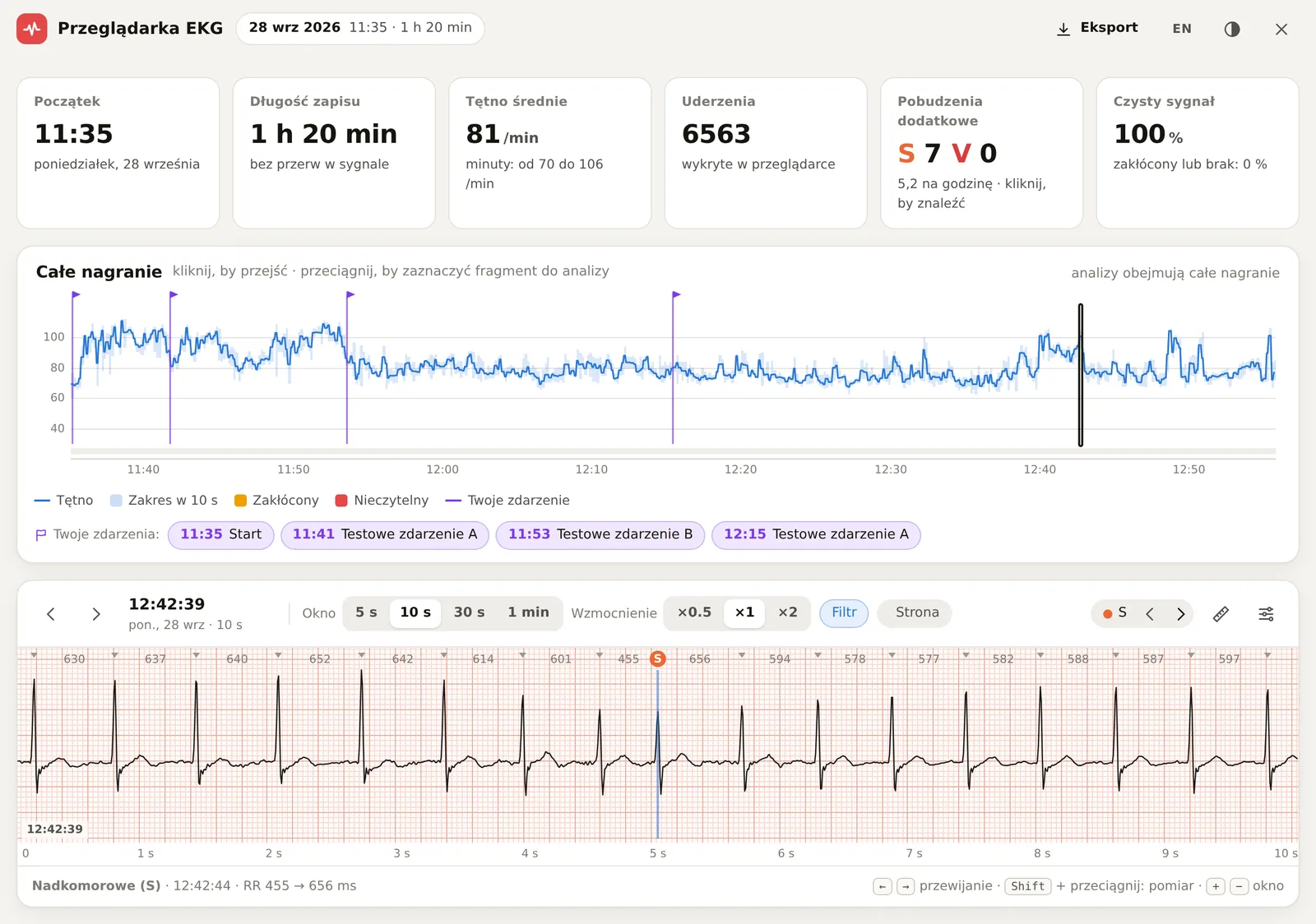

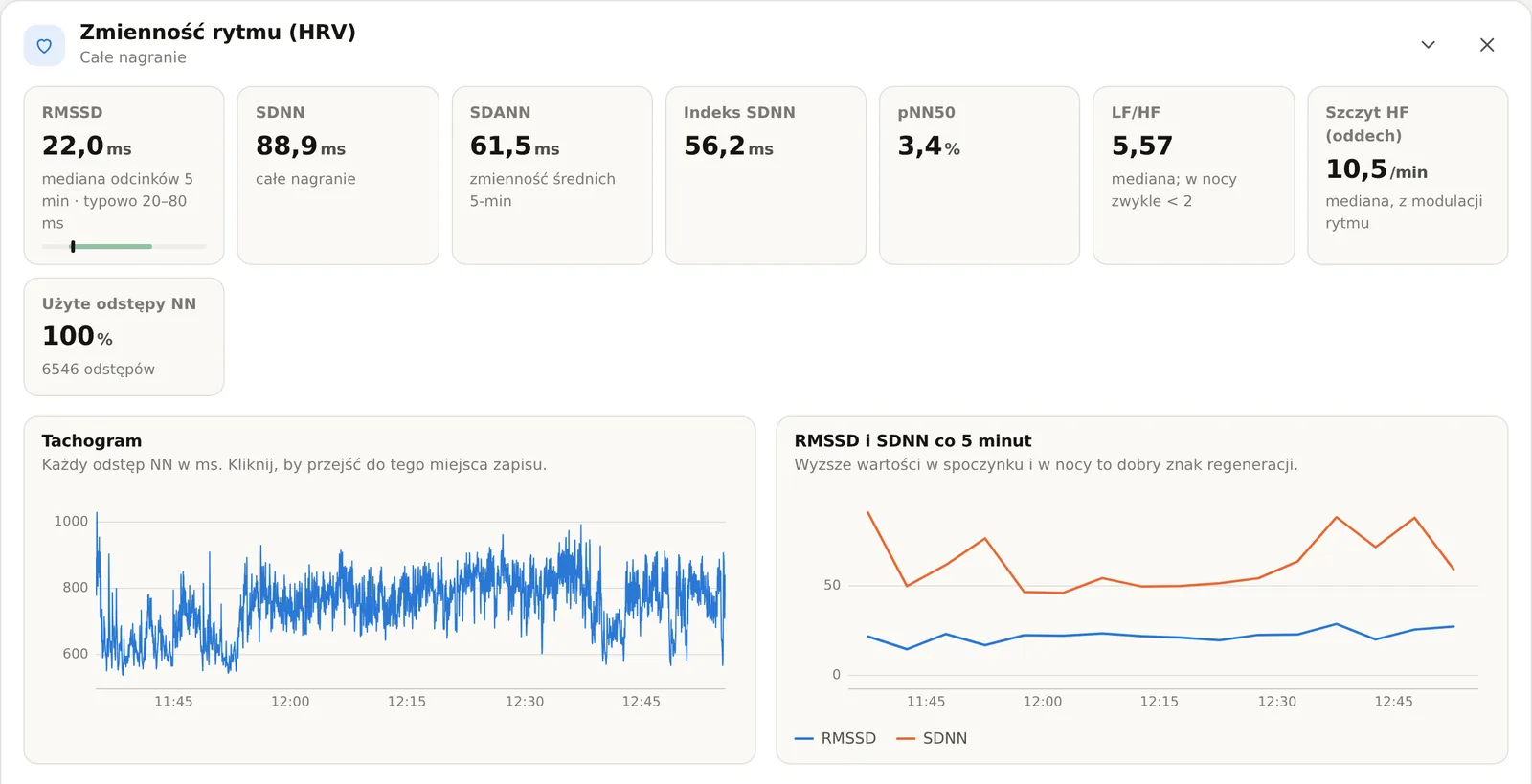

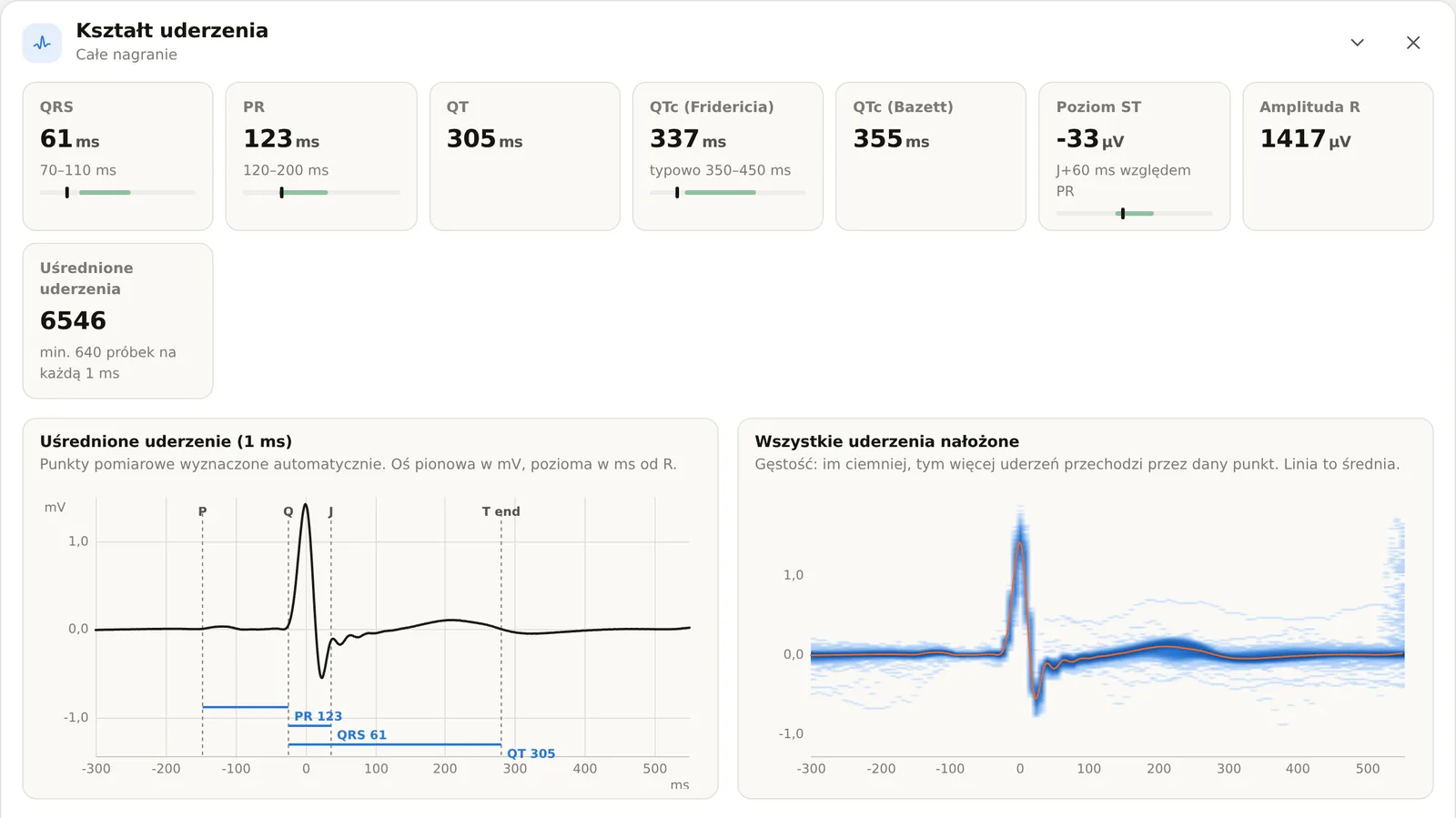

Na komputerze: Przeglądarka EKG

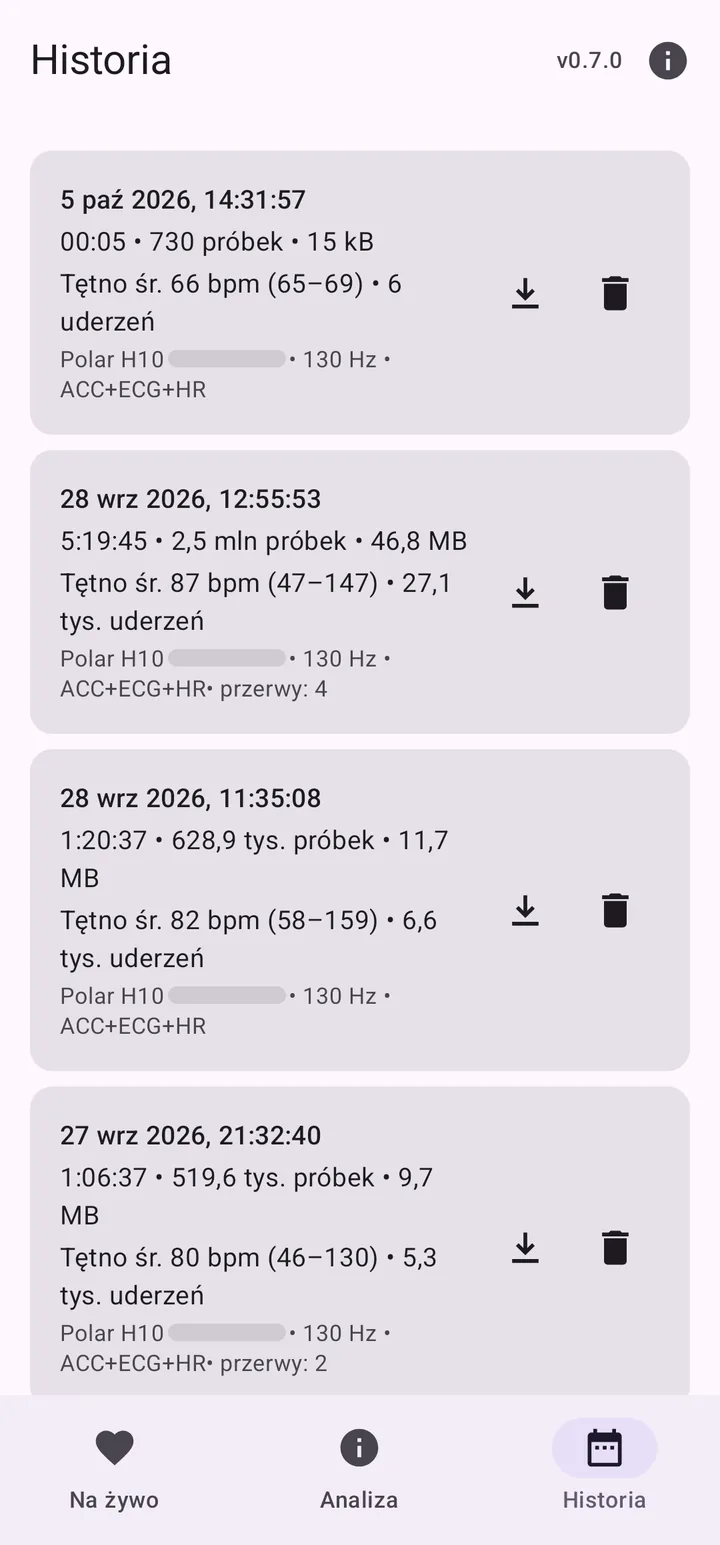

Przeglądarka EKG otwiera nagrania w przeglądarce internetowej. W aplikacji wejdź w Historię i dotknij ikony zapisu przy nagraniu: powstanie plik ZIP, który Przeglądarka EKG otwiera bez rozpakowywania. Jak wygląda prawdziwa noc, zobaczysz w przykładzie poniżej.

Plik jest czytany i analizowany wyłącznie w karcie Twojej przeglądarki internetowej. Przeglądarka EKG blokuje wszystkie połączenia sieciowe, więc nagranie nie trafia nigdzie — także na tę stronę.

Otwórz Przeglądarkę EKG Pobierz do pracy offline

Pobierasz jeden plik HTML (ok. 470 KB): otworzysz go z dysku w dowolnej przeglądarce, bez internetu. Nie aktualizuje się sam — po nowszą wersję pobierz go ponownie.

Zobacz przykładową noc Pobierz przykładowy zapis

13 godzin z Polar H10 nagranych Rejestratorem EKG przez twórcę aplikacji (data zmieniona): obracanie się w łóżku, wstawanie w nocy, zerwania połączenia — i co z nich wynika w analizie. Strona pobiera ok. 16 MB; ZIP to ten sam zapis, do otwarcia w Przeglądarce EKG albo do własnej analizy.

Prywatność

Bez konta, bez chmury, bez uprawnienia do sieci. Zapisy nie opuszczają telefonu, chyba że sam je udostępnisz.

Polityka prywatności

Pomysł, coś przeszkadza albo błąd? Napisz do autora prosto z aplikacji (Ustawienia → Opinie i pomysły) albo na adres kontakt@digitalpurr.com.

To nie jest wyrób medyczny Rejestrator EKG nie jest wyrobem medycznym i nie służy do diagnozowania, leczenia ani zapobiegania chorobom. Wszystkie wartości to automatyczne szacunki z jednego konsumenckiego odprowadzenia. W sprawach zdrowia skonsultuj się z lekarzem.

Języki: polski, angielski, niemiecki, hiszpański, francuski, włoski, portugalski (Brazylia i Portugalia), rosyjski, czeski, słowacki, niderlandzki, szwedzki, fiński, węgierski, chorwacki, grecki, japoński, chiński (uproszczony i tradycyjny) — w aplikacji, w raporcie PDF i w Przeglądarce EKG.

Polar jest znakiem towarowym Polar Electro Oy. Rejestrator EKG nie jest powiązany z firmą Polar ani przez nią zatwierdzony.
